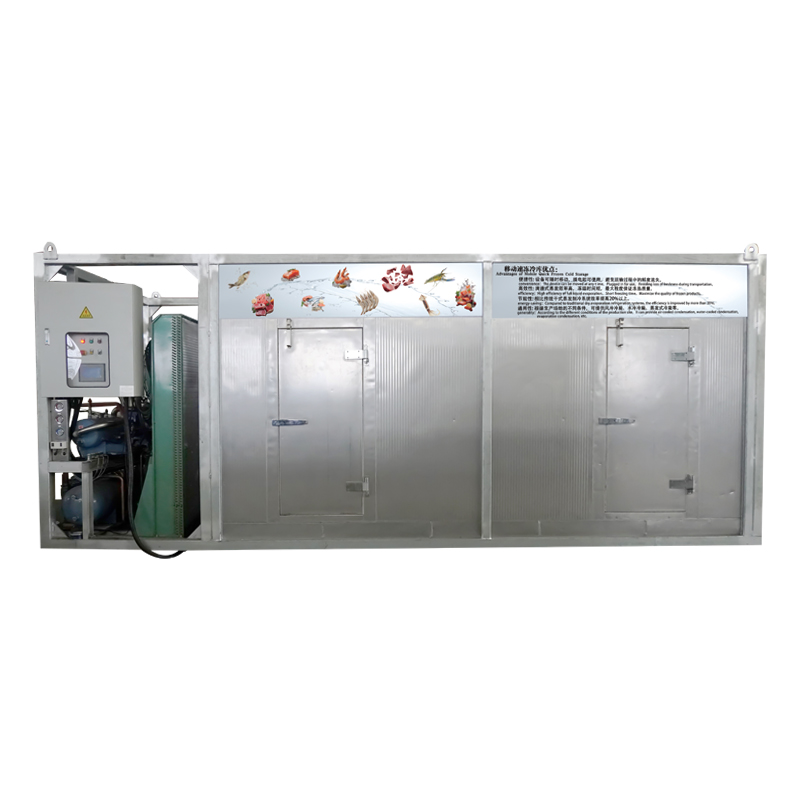

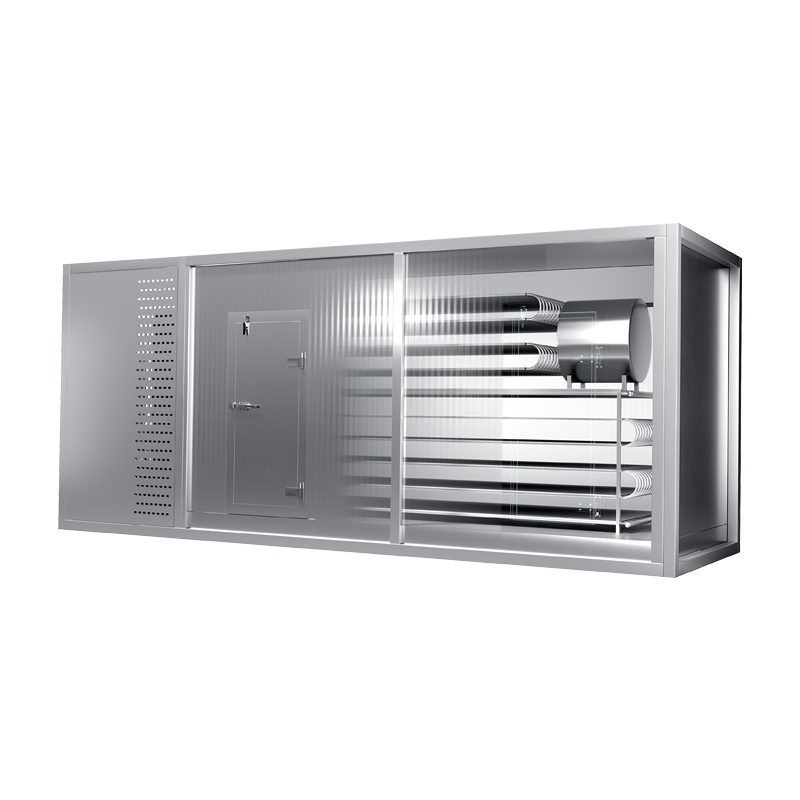

Integrated quick freezing cold storage
Integrated flash freezing cold storage is a highly integrated mobile refrigeration unit that combines an insulated enclosure, refrigeration system, control system, and power supply into a standalone module, suitable for temporary or mobile freezing/deep processing applications.
Plug-and-play 、Energy-efficient and high-performance、Full temperature range coverage Adjustable from -40°C to +15°C. Adjustable from -40°C to +15°C. Features IoT-enabled remote temperature and humidity monitoring.
| Technical Specifications | ||||
| model | External dimensions（L×W×H，m） | Internal volume（m³） | Production capacity volume（T） | Temperature range |
| LYDK-1 | 4.2*2.2*2.5 | 19m³ | 1T | 15℃~-40℃ |
| LYDK-1.5 | 5.4*2.2*2.5 | 25m³ | 1.5T | 15℃~-40℃ |
| LYDK-2 | 6.1*2.3*2.5 | 30m³ | 2T | 15℃~-40℃ |
| LYDK-2.5 | 6.7*2.3*2.5 | 33m³ | 2.5T | 15℃~-40℃ |
| Customizable dimensions | ||||
