Product

Integrated refrigeration unit

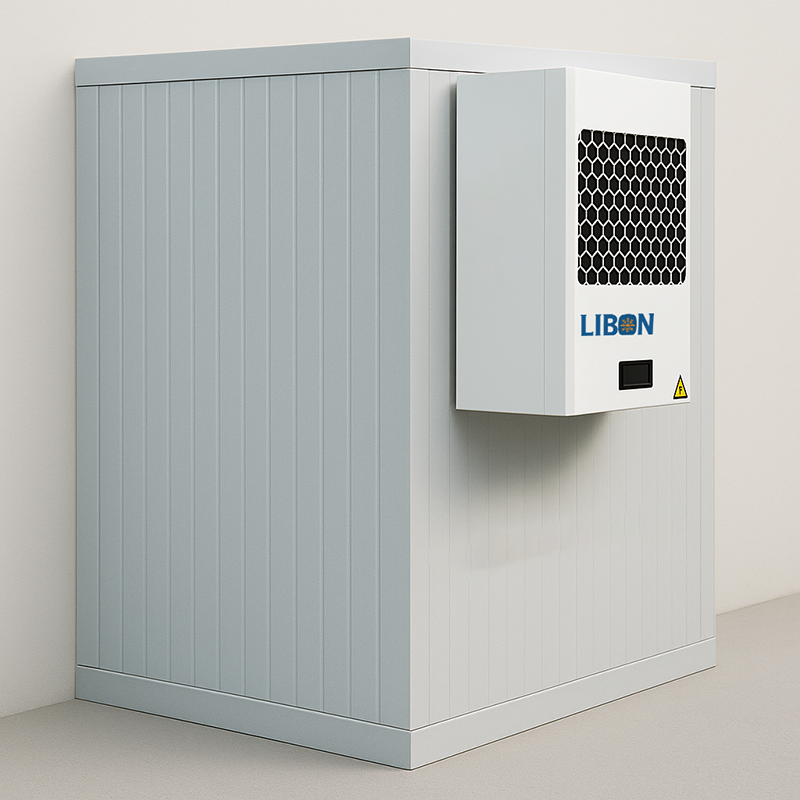

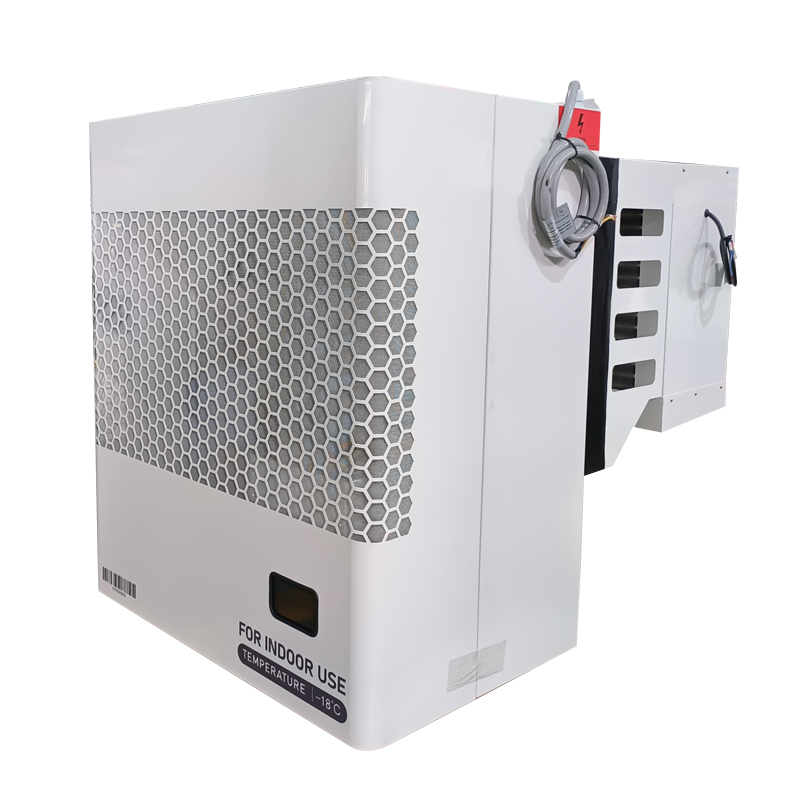

Monoblock refrigeration units (integrated condensing units) are mainly used in small and medium-sized cold storage and commercial refrigeration/freezing

Scene. Its typical applications include: food cold chain, pharmaceutical storage, industrial fields, and agricultural flower preservation.

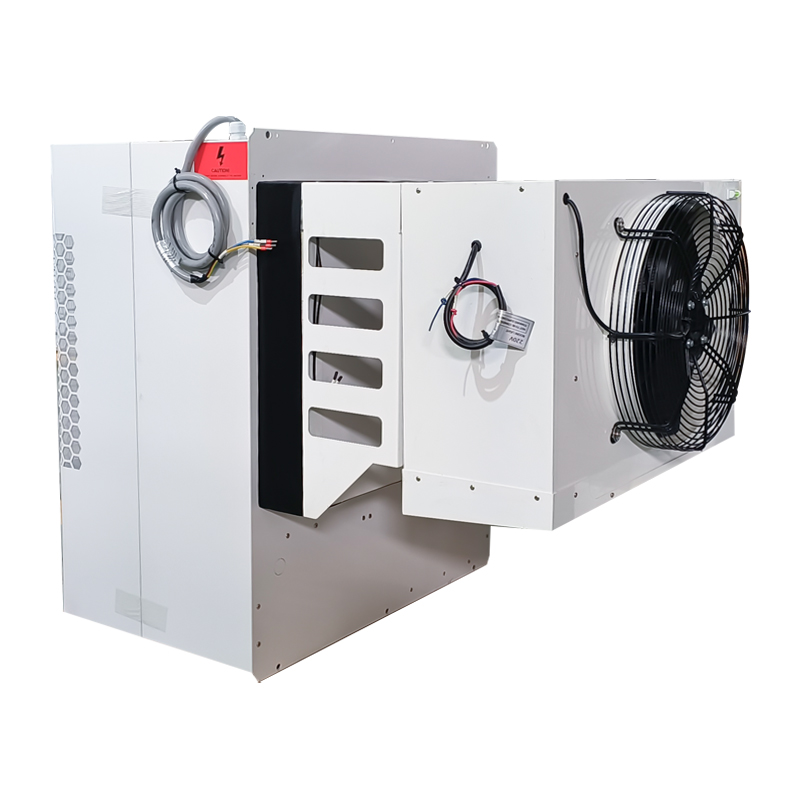

Integrate the compressor, condenser, expansion valve/air cooler, and lighting into

Inside a closed computer case

Simply connect the power supply to operate without the need for on-site assembly of refrigeration pipelines.

Product Details Specs



Technical Specifications
model

Cooling  Capacity

PowerRated CurrentCooling Type

Min Storage Capacity

Max Storage Capacity
LQMB-01L11240W1HP6.1AAir Cooling2m³4m³
LQMB-01.5L12160W1.5HP6.1AAir Cooling12m³21m³
LQMB-02L12330W2HP10.3AAir Cooling9m³23m³
LQMB-02.5L13970W2.5HP11AAir Cooling30m³48m³
LQMB-03L15560W3HP15.5AAir Cooling39m³65m³
LQMB-04L16135W4HP7.5AAir Cooling52m³94m³
