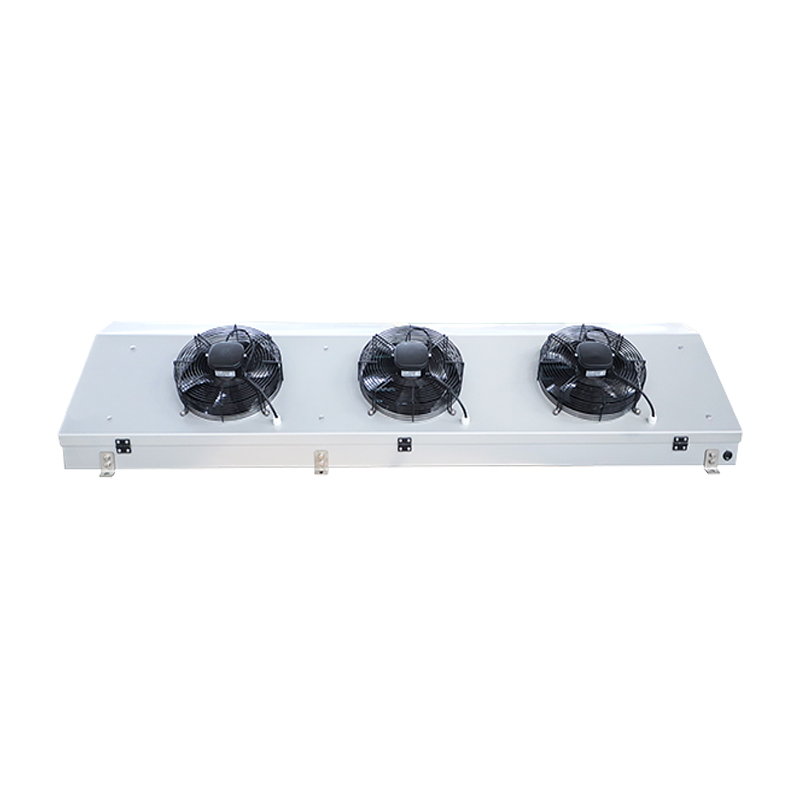

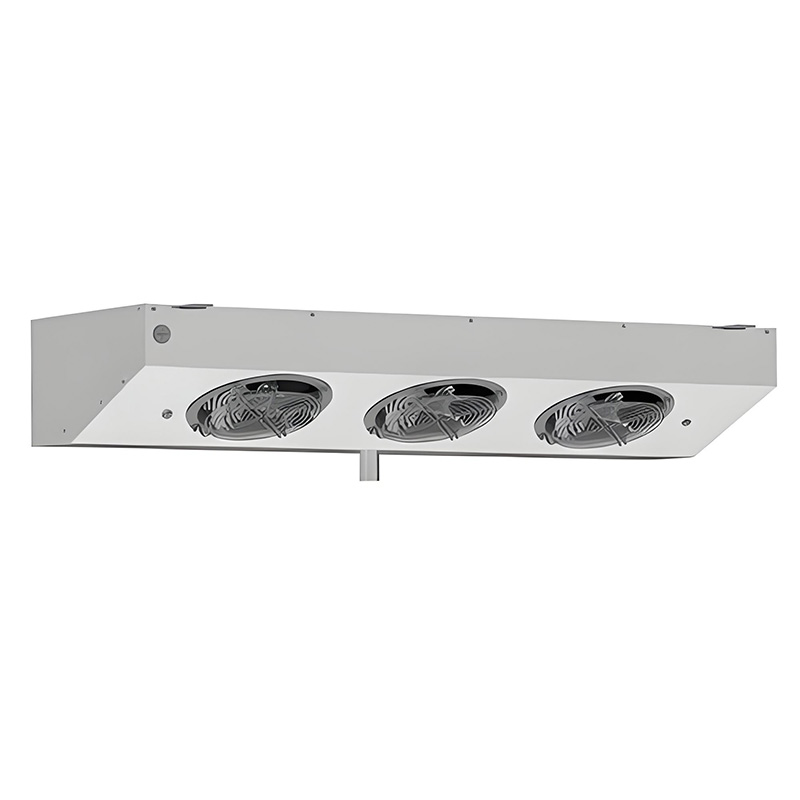

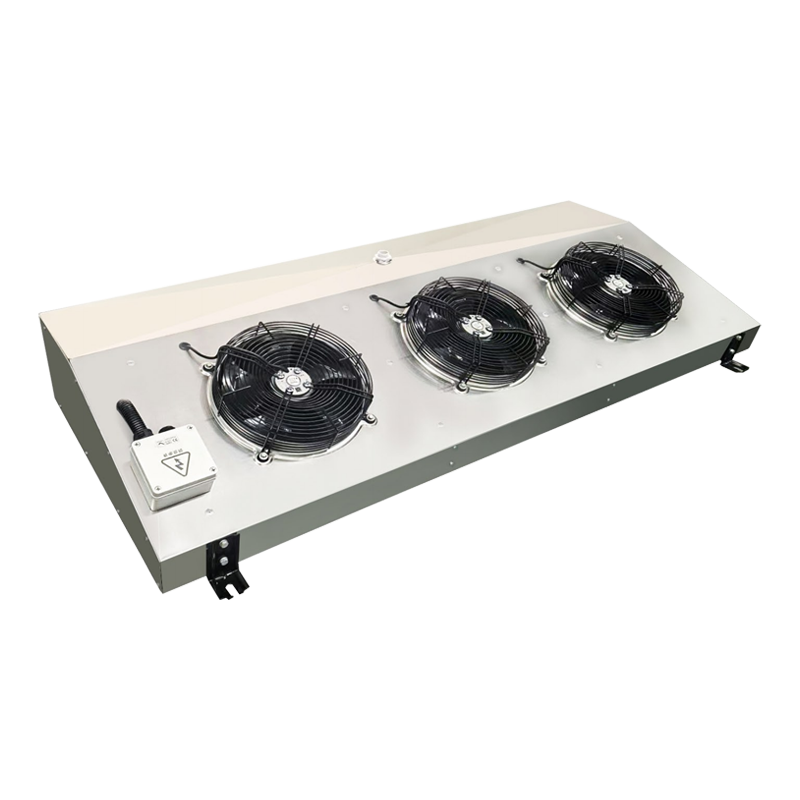

Angle type air cooler
Angle type air coolers are suitable for cooling equipment with limited installation size inside the warehouse. They can be used to blow air from the single-sided fin side or from the inclined end motor side, in two ways.
Adopting a 12.7 internally threaded copper tube fork arrangement and large wavy sine wave fins.
| Technical Specifications | ||||||||||||
| model | Capacity | Storage capacity | Fan parameters | Electric Defrost | Take-over dimensions | External dimensions(B*T*H) | Weight | |||||
| SC1 | SC2 | dm³ | Fan Mot(n*Φmm) | Fan Power(W) | Fan Flow(m³/h) | Range(m) | Defrosting power of fins | Defrosting power of pan | Inlet/outlet(mm) | Length*width*height(mm) | KG | |
| LAMT-2.0/301E | 2.9 | 2 | 1.8 | 1*Φ300 | 1*85 | 1115 | 5 | 0.6*2 | 0.3*1 | Φ12/Φ16 | 805*790*275 | 21 |
| LAMT-2.6/301E | 3.7 | 2.6 | 2.7 | 1*Φ300 | 1*85 | 970 | 4 | 0.6*2 | 0.3*1 | Φ12/Φ16 | 805*790*275 | 22 |
| LAMT-3.6/302E | 5.3 | 3.6 | 2.7 | 2*Φ300 | 2*85 | 2370 | 6 | 1.1*2 | 0.5*1 | Φ12/Φ16 | 1355*790*275 | 33 |
| LAMT-4.2/302E | 6 | 4.2 | 3.6 | 2*Φ300 | 2*85 | 2230 | 6 | 1.1*2 | 0.5*1 | Φ12/Φ22 | 1355*790*275 | 35 |
| LAMT-5.1/302E | 7.3 | 5.1 | 5.4 | 2*Φ300 | 2*85 | 1940 | 5 | 1.1*2 | 0.5*1 | Φ12/Φ22 | 1355*790*275 | 37 |
| LAMT-6.3/303E | 9 | 6.3 | 5.4 | 3*Φ300 | 3*85 | 3345 | 7 | 1.7*2 | 0.8*1 | Φ12/Φ28 | 1905*790*275 | 49 |
| LAMT-7.4/303E | 10.7 | 7.4 | 8.1 | 3*Φ300 | 3*85 | 2910 | 6 | 1.7*2 | 0.8*1 | Φ12/Φ28 | 1905*790*275 | 52 |
| SC1 Operating Conditions：Evaporating Temperature：0℃，Temperature Difference：10K，Inlet Air Temperature：10℃，Superheat：6.5K，Relative Humidity：85% | ||||||||||||
| SC2 Operating Conditions：Evaporating Temperature：-8℃，Temperature Difference：8K，Inlet Air Temperature：0℃，Superheat：5.2K，Relative Humidity：85% | ||||||||||||
